HOME > Product > DMX Lighting DMX Lighting
DESCRIPTION:

DMX LED Strip

1.16 pixels/m, 24 pixels/m, 30 pixels/m, high manifestation and visual impact

2.Standard DMX 512 control, 44frames/second, manual or auto-addressing customized

3.2D pixel mapping to set on the software programming

4.Protections: short circuit, over current , over temperature

5.With working life-span at least 50,000hrs;

6.Fast get through input/output signal;

7.IP65 waterproof protect the DMX IC and led with silicon tube;


Application: adapted for all kinds of installation methods including, stage, lighting background, hockey area and all kinds of special-shaped,



  • Parameters

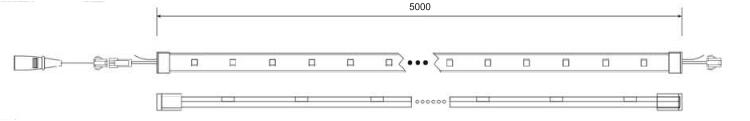

  • Dimension
  • Diagram
  • Datasheet

Model NO.

LED-FS5000DMX3216

LED-FS5000DMX2424

LED-FS5000DMX3030

LED type

SMD RGB 5050

SMD RGB 5050

SMD RGB 5050

LED QTY

32 Leds/meter

24 Leds/meter

30 Leds/meter

Pixels

16 pixels/meter

24 pixels/meter

30 pixels/meter

Emitting angle

120 degrees

120 degrees

120 degrees

Color

RGB full color

RGB full color

RGB full color

Gray Scale

256

256

256

Operating Voltage

DC 12V

DC 7.5V

DC 7.5V

Power

MAX=12W/M

MAX=11W/M

MAX=14W/M

PCB Size

5000*15mm

5000*15mm

5000*15mm

Control Protocol

DMX512

Control Mode

DMX Artnet / DMX DVI / Standalone Control

PCB Color

White/Black

LED Source Life

50,000 hours, based on test data of LED manufacturer

Temperature

-4 to 122(-20 to 50) operating temperature

Humidity Range

0 to 95% non-condensing

Protection

Silicon tube IP65 ( only protection type)
