SD Card LED Controller - LED Controller - Global Leading Lighting and Controlling System Provider|ISEELED

DESCRIPTION:

SD Card LED Controller

1. Standalone LED Controller

2. 1/2/8 output SD card LED Controller

3. Easy to operate the software and the controller

Application: adapted for all kinds of led lighting under standalone control,

pre-program the data and play when power on lights and control

Notice, because the main ic out of stock, we will not produce the 1 and 2 output SD card LED controller temporarily since 5-26th-2021

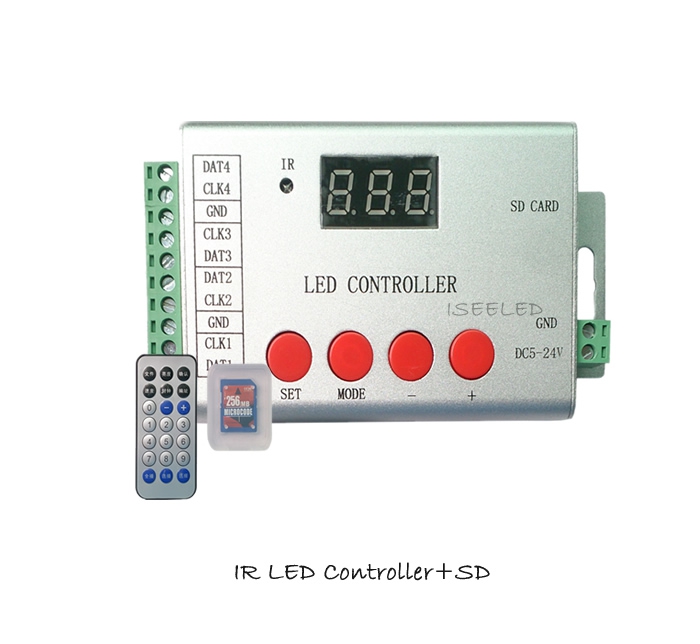

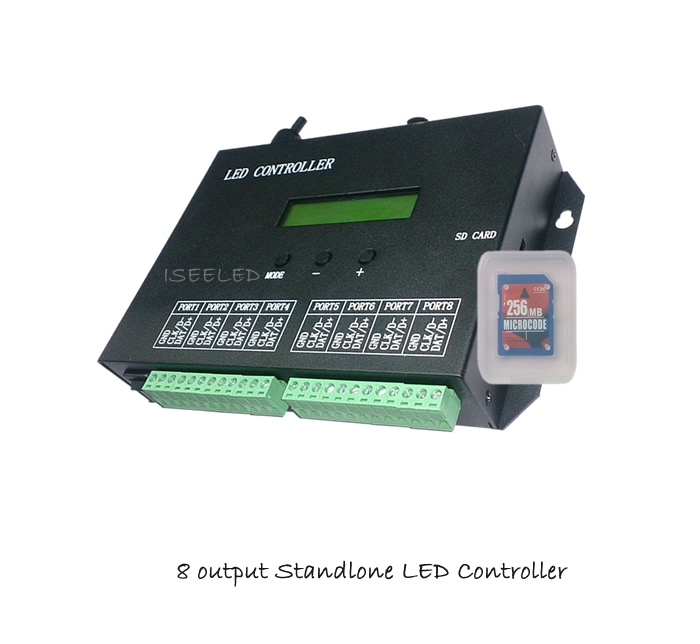

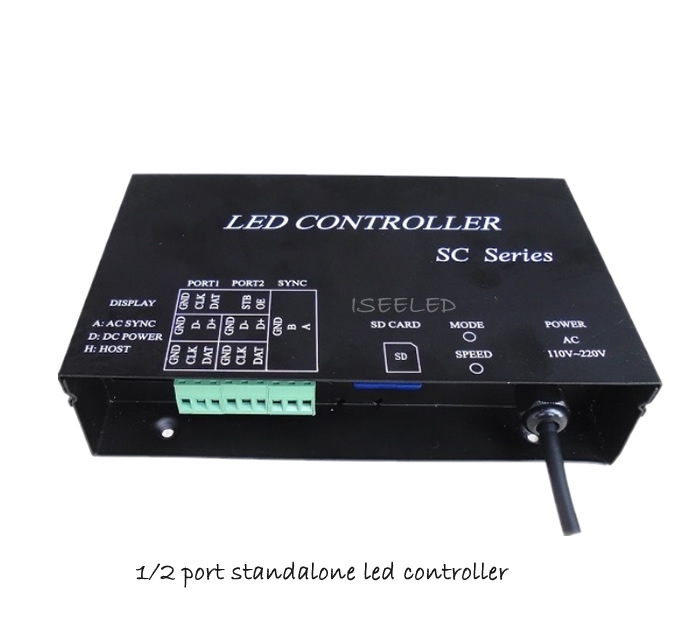

Model	LED-SC01	LED-SC02	LED-SA08	LED-GPS-SC	LED-IR-SB01
Control Port	1 port	2ports	8 ports	2ports	1 port
Control Pixels	1X1024	2X1024	8X1024	2X1024	1X4096
Input Voltage	AC110V/AC220V	AC110V/AC220V	AC110V/AC220V	AC110V/AC220V	DC5-24V
Power Consumption	1W		1W	1W	0.3W
Weight	0.7KG		1KG	1KG	0.075KG
Working Temperature	-20C°--85C°		-20C°--85C°	-20C°--85C°	-20C°--85C°
Dimension	L145 x W140 x H54mm		L205 x W155 x H54mm	L180 x W126 x H46mm	L132 x W71 x H24mm
Control IC Driver	LPD6803, LPD8806, LPD6813, LPD1882, LPD1889, DMX512, P9813, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, DZ2809, LPD2ws5109, SD600, SM16716, TLS3001, TM1812, TM1809, TM1804, TM1803, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, 74HC595, 6B595, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, etc.

Model	LED-SC01	LED-SC02	LED-SA08
Dimension	L145 x W140 x H54mm		L205 x W155 x H54mm
