HOME > Product > SPI Lighting SPI Lighting
DESCRIPTION:

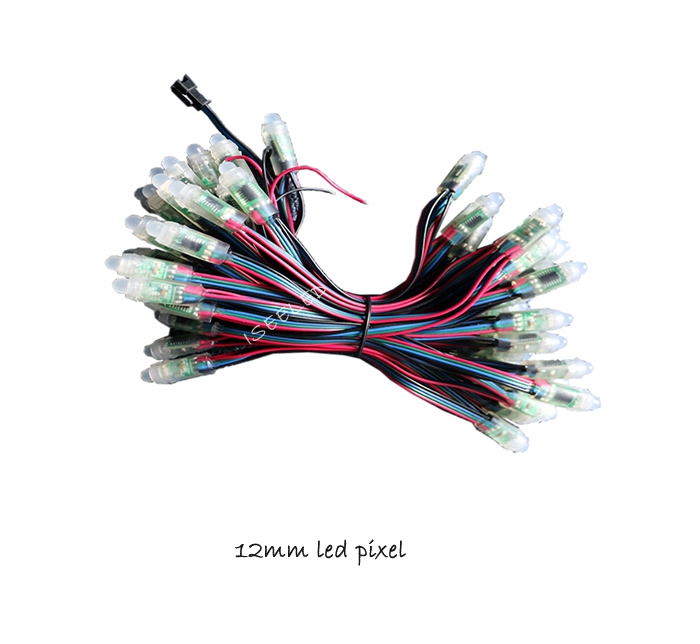

12mm LED Module

1. Dimension: 12mm

2. Input Voltage: DC 5V

3. Power: MAX=0.3W

4. 50 modules / string with standard 10cm pitch

5. ɸ12mm and drill 12.0-12.3mm hole for installation

6. The module controllable by 2811 LED controller

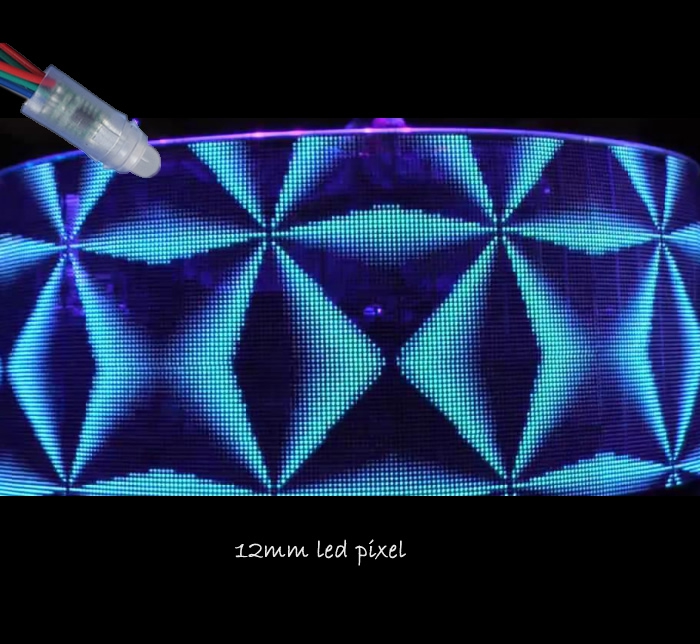

Application: Lighting box, Advertisement billboard,Exposed luminous characters, Club Screen on the ceiling or the wall, Digital ceiling light, Digital LED wall.

  • Parameters

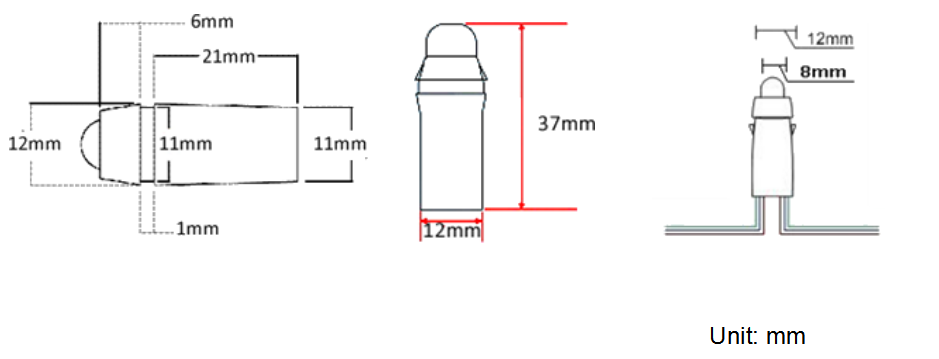

  • Dimension

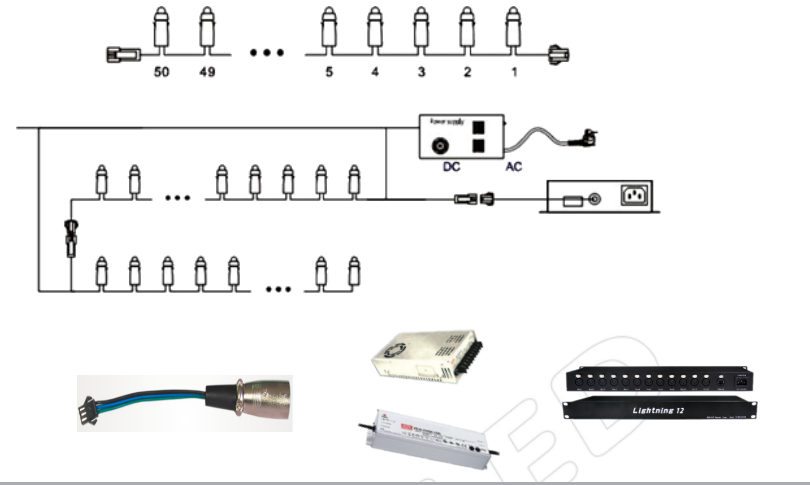

  • Diagram
  • Datasheet

Model NO.

LED-PL12SPI28110101

LED-PL12SPI28010101

LED-PL12SPI28210101

LED type and QTY

Φ8  DIP LED *1

Φ8  DIP LED *1

Φ8  DIP LED *1

Emitting angle

120 degrees

120 degrees

120 degrees

Pixels/ string

50 pcs/ string

50 pcs/ string

50 pcs/ string

Color

RGB full color

RGB full color

RGB full color

Operating Voltage

DC 5V

DC 5V

DC 5V

Max Power

MAX=0.3W

MAX=0.3W

MAX=0.3W

Control Protocol

WS2811

WS2801

DMX512

Dimension (PCB)

10 MM

10 MM

10 MM

Dimension (housing)

12*37 MM

12*37 MM

12*37 MM

Housing Material

PVC

PVC

PVC

LED Source Life

50,000 hours, based on test data of LED manufacturer

Temperature

-4℉ to 122℉(-20℃ to 50℃) operating temperature

Humidity Range

0 to 95% non-condensing

Protection

IP65
