HOME > Product > SPI Lighting SPI Lighting
DESCRIPTION:

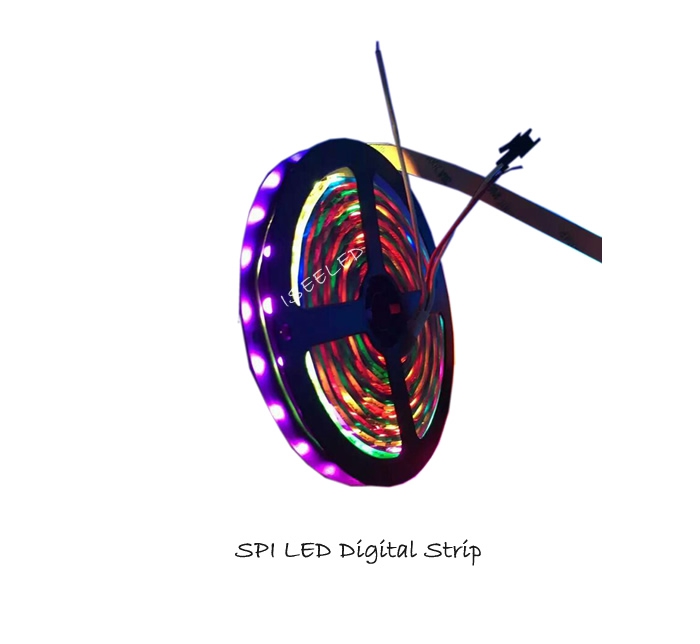

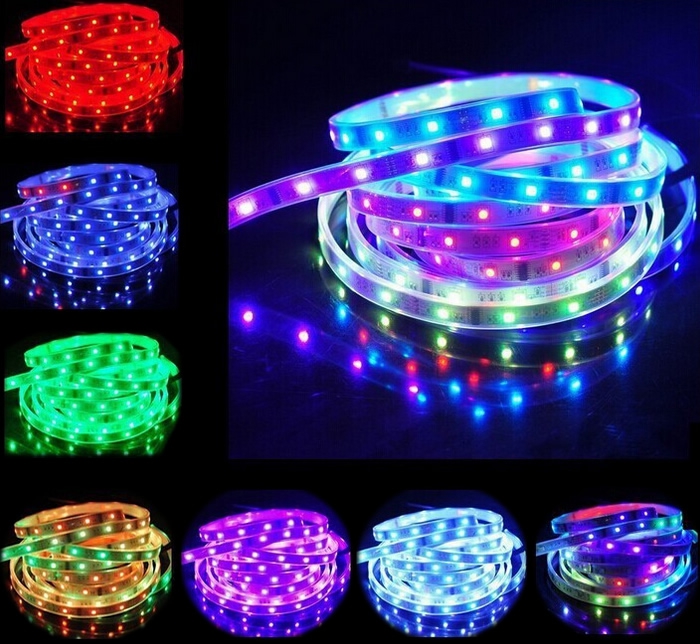

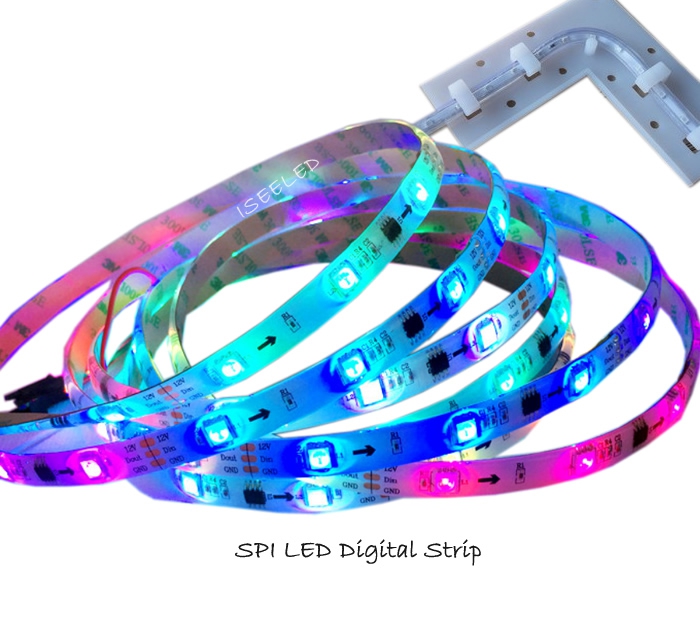

SPI LED Strip

1.1 led 1 pixel, 3 led 1 pixel digital led strip;

2.The digital led strip can realize scanning, flash, chasing,

3.video and other program;

4.The chain connection max 10M according to different type of digital led strip, and it would be better  connected power supply each 4/5 meters;

5.Protections: short circuit, over current , over temperature .

6.With working life-span at least 50,000hrs;

7.Fast get through input/output signal;

8,IP20/IP65/IP67/IP68 available;

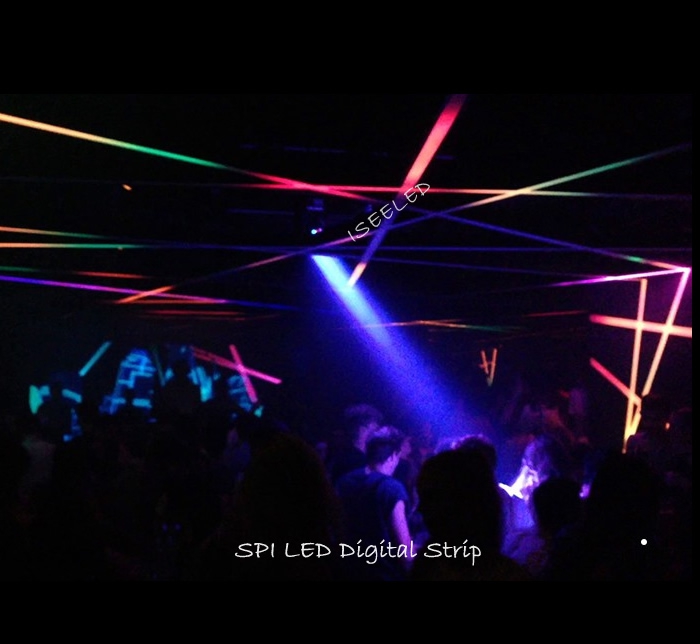

Application: adapted for all kinds of installation methods including, stage, club, party and video art project

  • Parameters

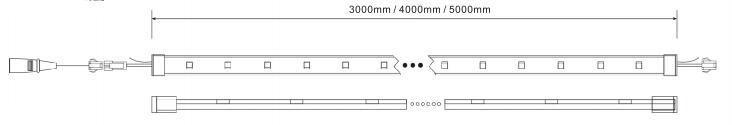

  • Dimension

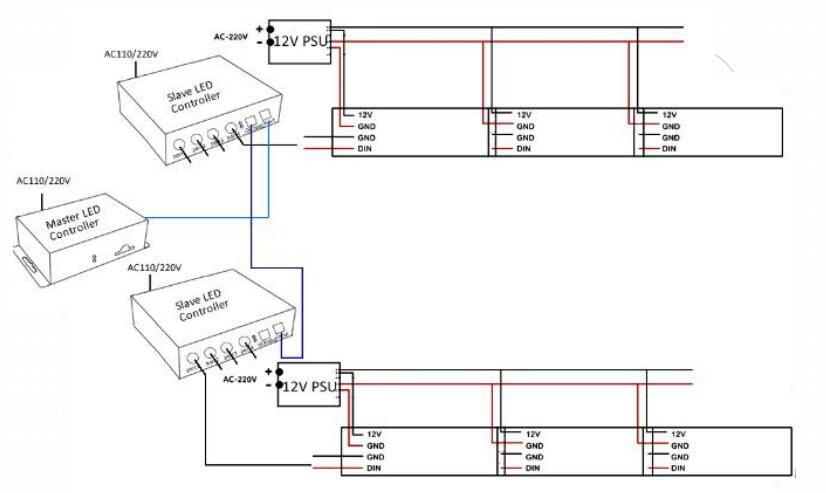

  • Diagram
  • Datasheet

Model NO.

LED-FS5000WS28123030

LED-FS5000WS28126060

LED-FS5000WS2812144144

LED-FS5000WS28123232

LED type

SMD RGB 5050

SMD RGB 5050

SMD RGB 5050

SMD RGB 5050

LED QTY

30 Leds/meter

60 Leds/meter

144 Leds/meter

32 Leds/meter

Color

RGB full color

RGB full color

RGB full color

RGB full color

Operating Voltage

DC 5V

DC 5V

DC 5V

DC 5V

Power

MAX=9W/M

MAX=18W/M

MAX=43.2W/M

MAX=9.6W/M

Dimension

L5000mm x W10mm

L5000mm x W12mm

L5000mm x W12mm

L5000mm x W12mm

Working Current

1.8A / M

3.6A/ M

8.64A/ M

1.92A/ M

PCB Color

White/Black

LED Source Life

50,000 hours, based on test data of LED manufacturer

Temperature

-4 to 122(-20 to 50) operating temperature

Protection

IP20/IP65/IP67/IP68
