HOME > Product > SPI Lighting SPI Lighting
DESCRIPTION:

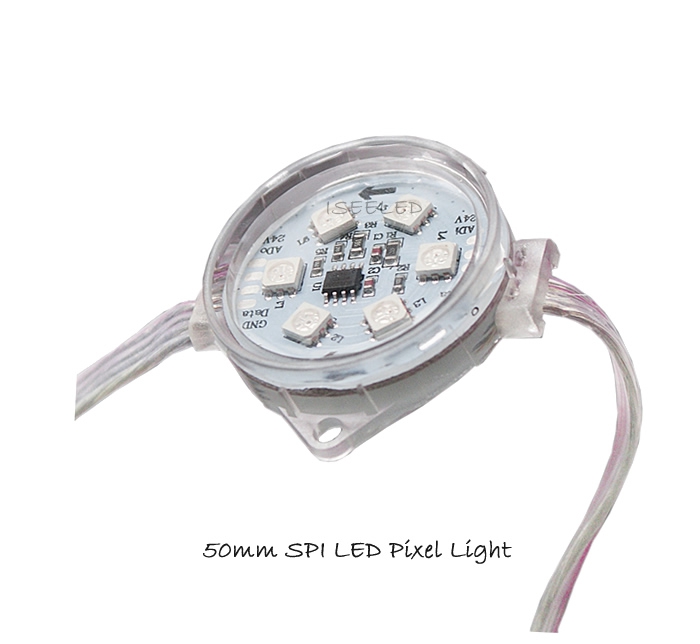

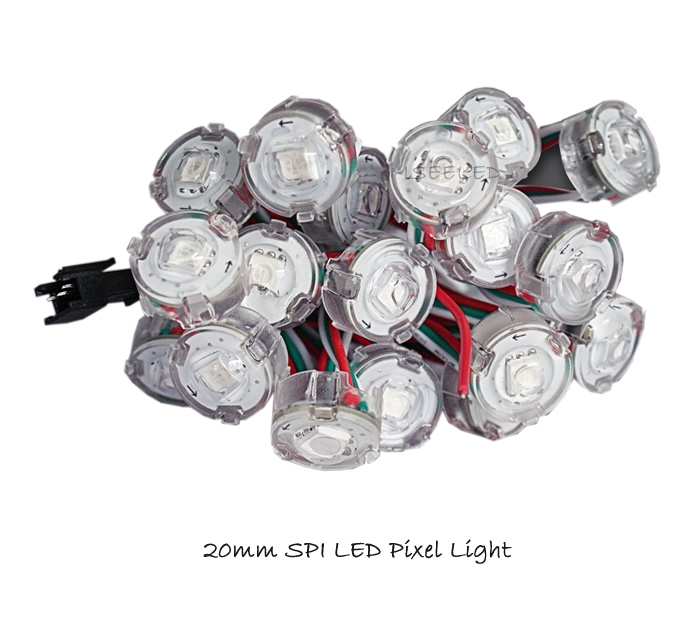

SPI Led Pixel Light

1.Dimension: 20mm up to 100mm

2.2D pixel mapping to set on the software programming

3.Easy to install

4.Protections: short circuit, over current , over temperature

5.With working life-span at least 50,000hrs

6.Fast get through input/output signal


Application: adapted for all kinds of installation methods including, stage background, lighting background, hockey area and all kinds of special-shaped


  • Parameters

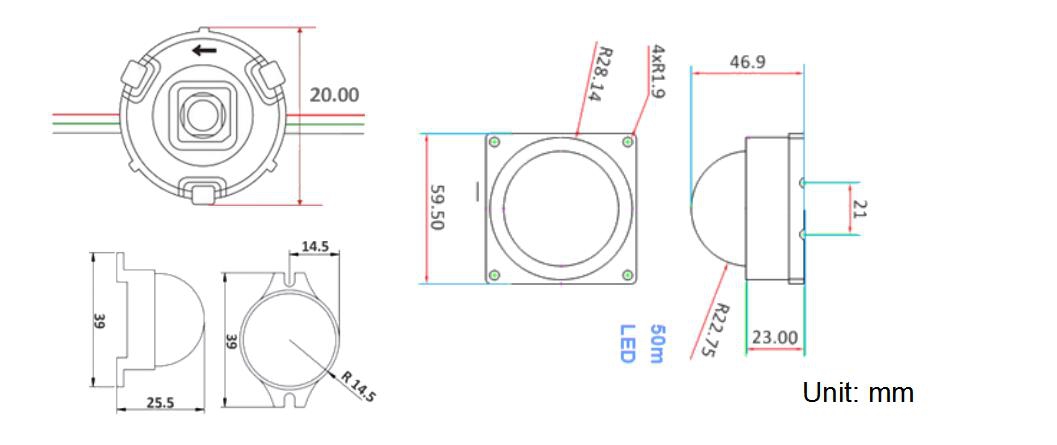

  • Dimension

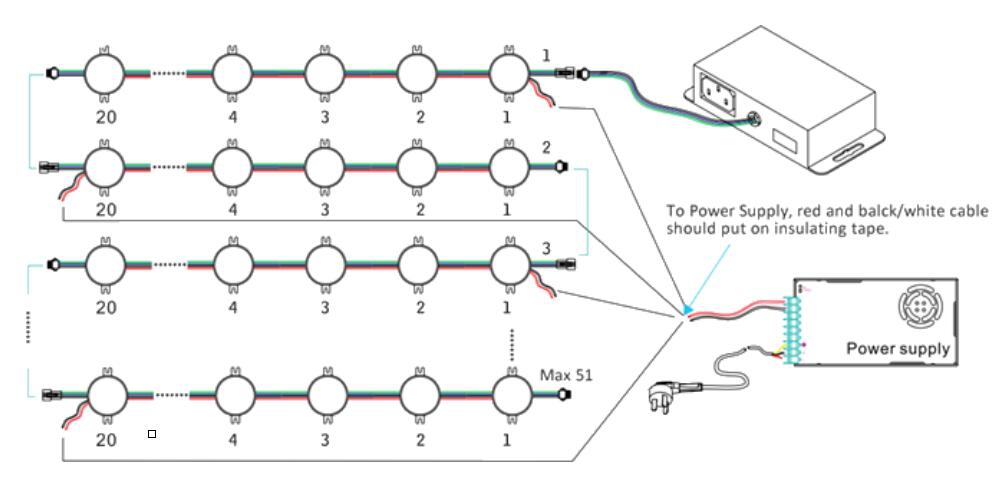

  • Diagram
  • Datasheet

Model NO.

LED-PL20SPI0101

LED-PL30SPI0301

LED-PL50SPI0601

LED-PL50SPI0601

LED type and QTY

1pcs SMD RGB 5050

3pcs SMD RGB 5050

6pcs SMD RGB 5050

6pcs SMD RGB 5050

Emitting angle

120 degree

120 degree

120 degree

120 degree

Color

RGB full color

RGB full color

RGB full color

RGB full color

Operating Voltage

DC 5V

DC 12V

DC 12V

DC 12V

Power

MAX=0.3W

MAX=0.72W

MAX=1.44W

MAX=1.44W

Control Protocol

WS2811

WS2811

WS2821

WS2811

Control Mode

DVI / Standalone Control

Dimension (housing)

20MM diameter

30MM diameter

50MM diameter

50MM diameter

Housing Material

PC

PC

PC

PC

LED Source Life

50,000 hours, based on test data of LED manufacturer

Temperature

-4℉ to 122℉(-20℃ to 50℃) operating temperature

Humidity Range

0 to 95% non-condensing

Protection

IP65

IP65

IP65

IP65
